Wheel weights

Description

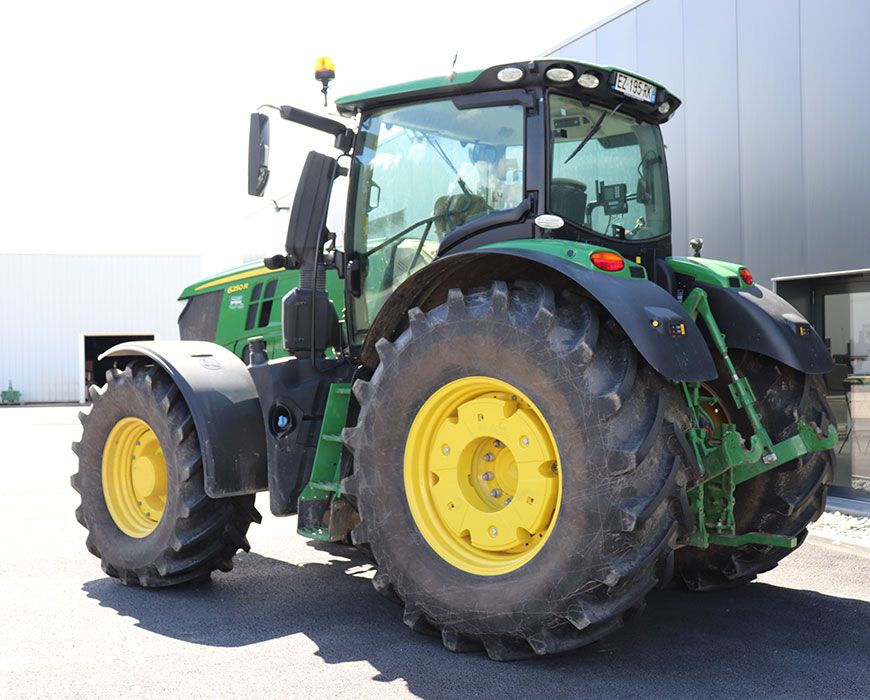

Ballasting by the wheels allows the coupling of other equipments at the rear of the tractor.
Harmonises perfectly with the tractor, makes it appear better finish.

Advantages

  • A range of different weights so you will always find the perfect solution
  • Cast iron weights, robust, resistant and durable
  • Many possible combinations

Technical characteristics

Dimensions

Model External Ø (mm) Internal Ø (mm) Width (mm)
50kg 579 395 92

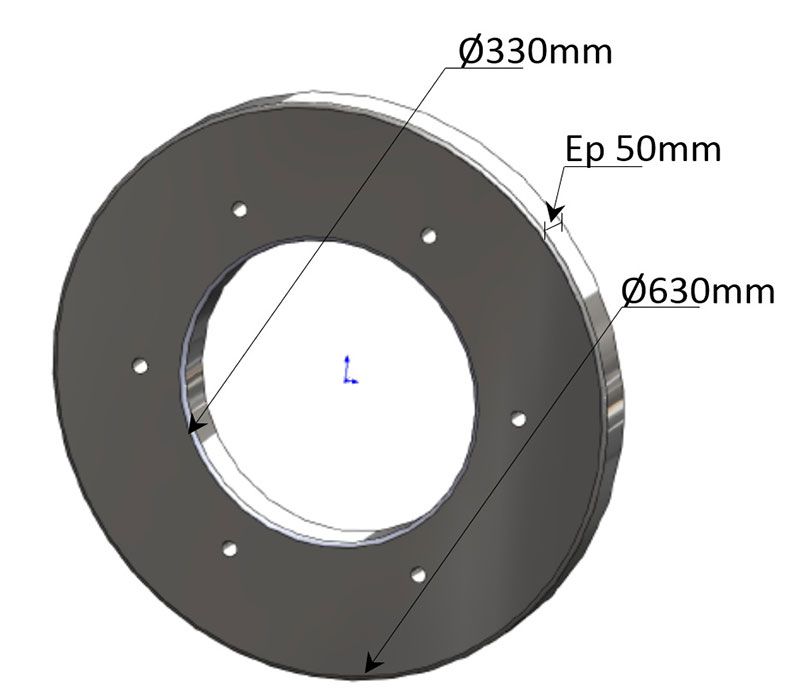

80kg 630 330 50

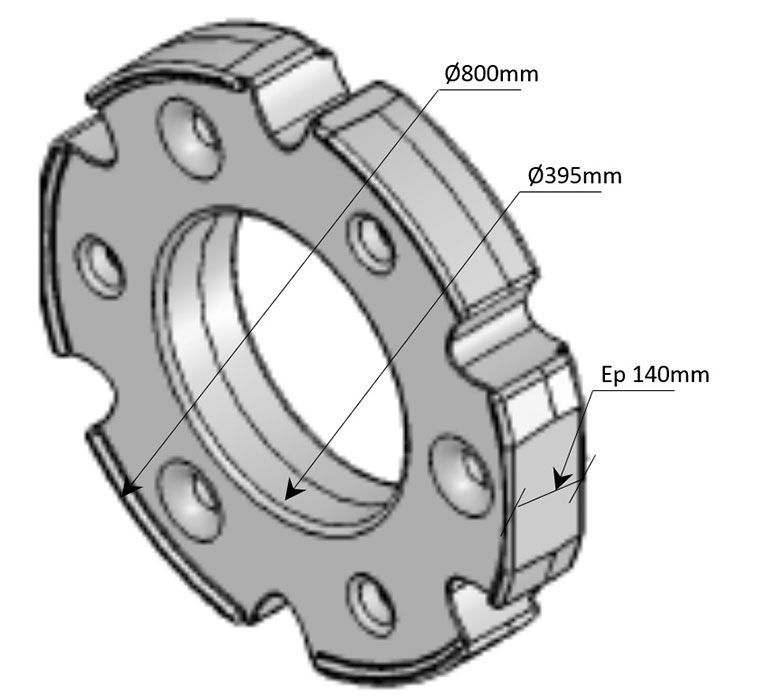

300kg 800 395 140

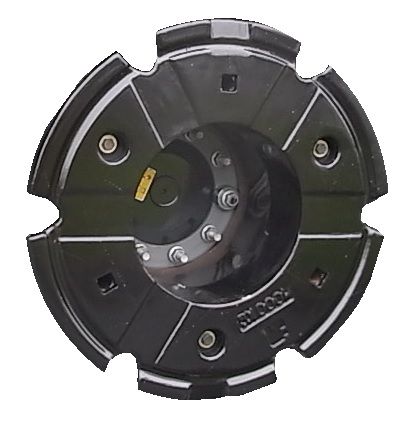

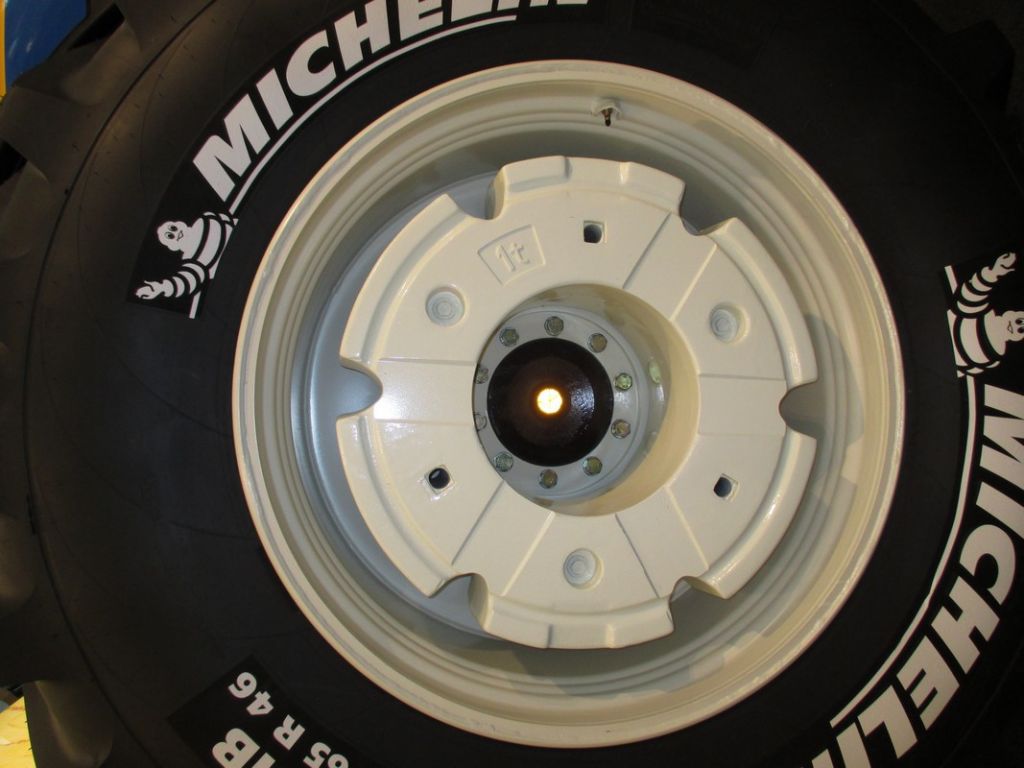

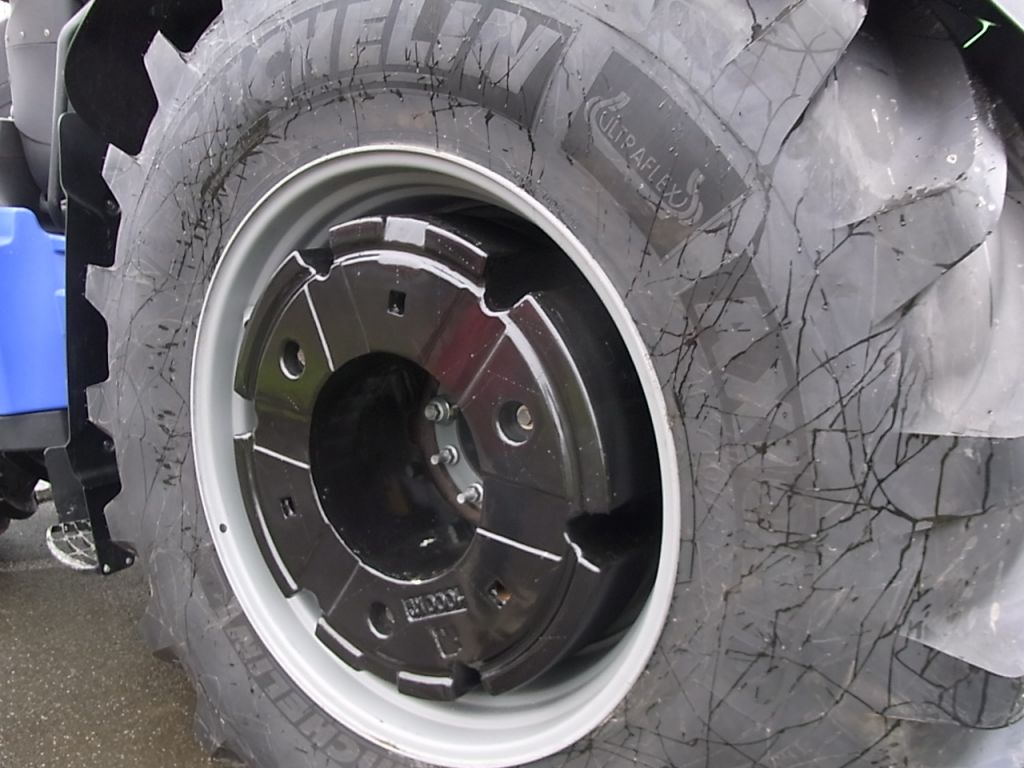

1000kg 900 400 316

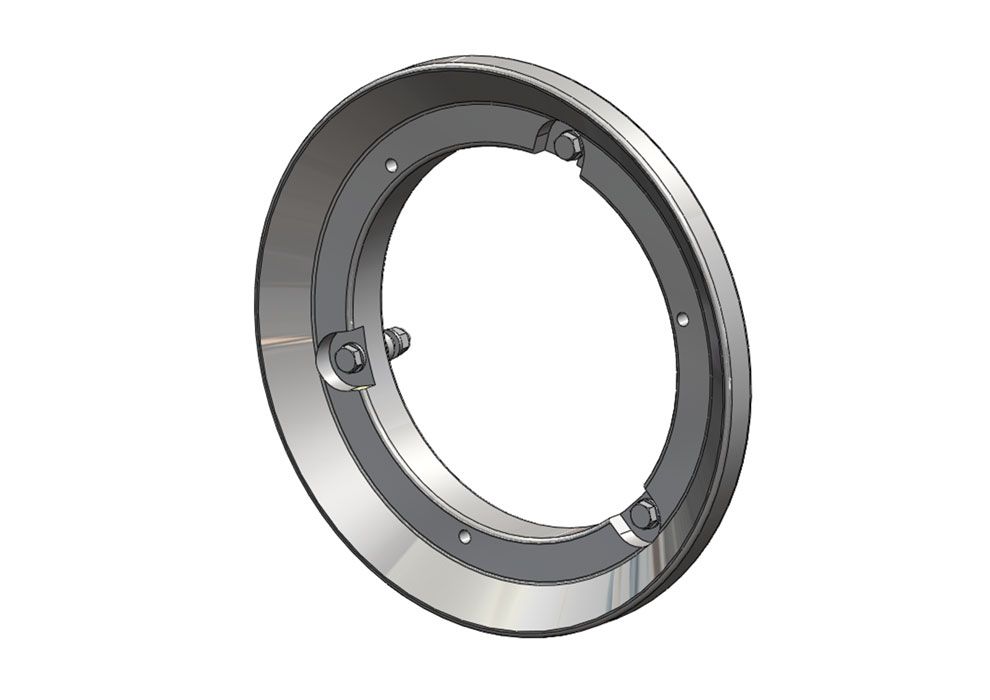

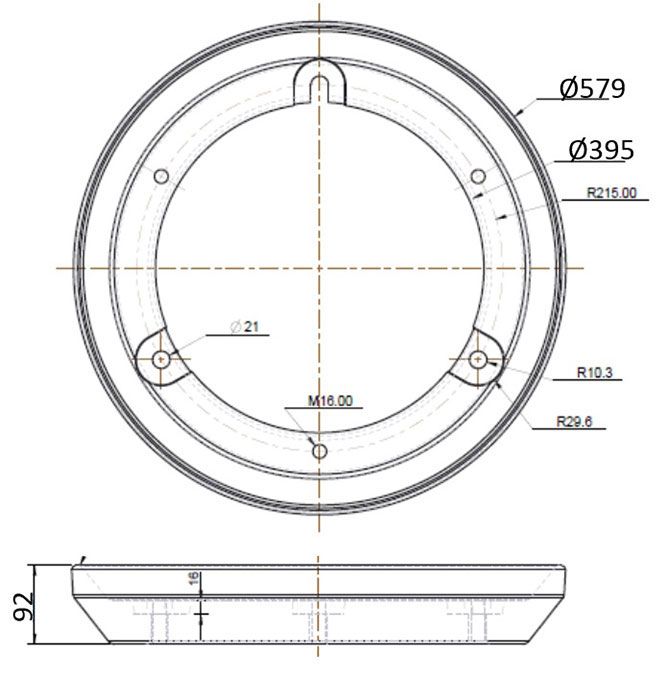

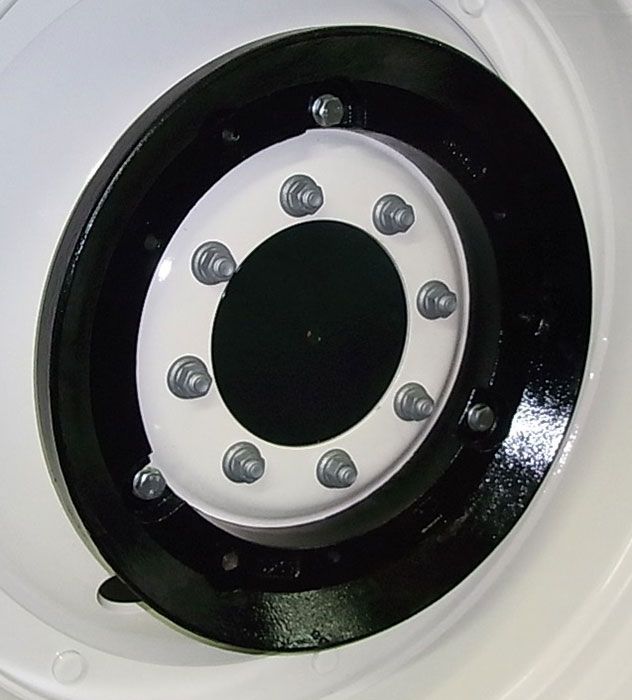

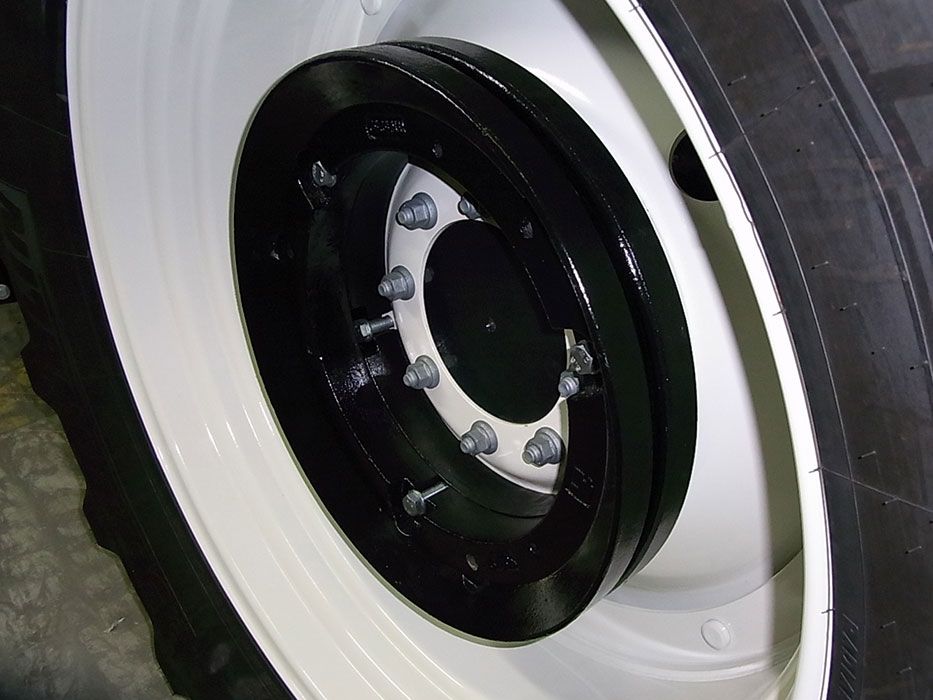

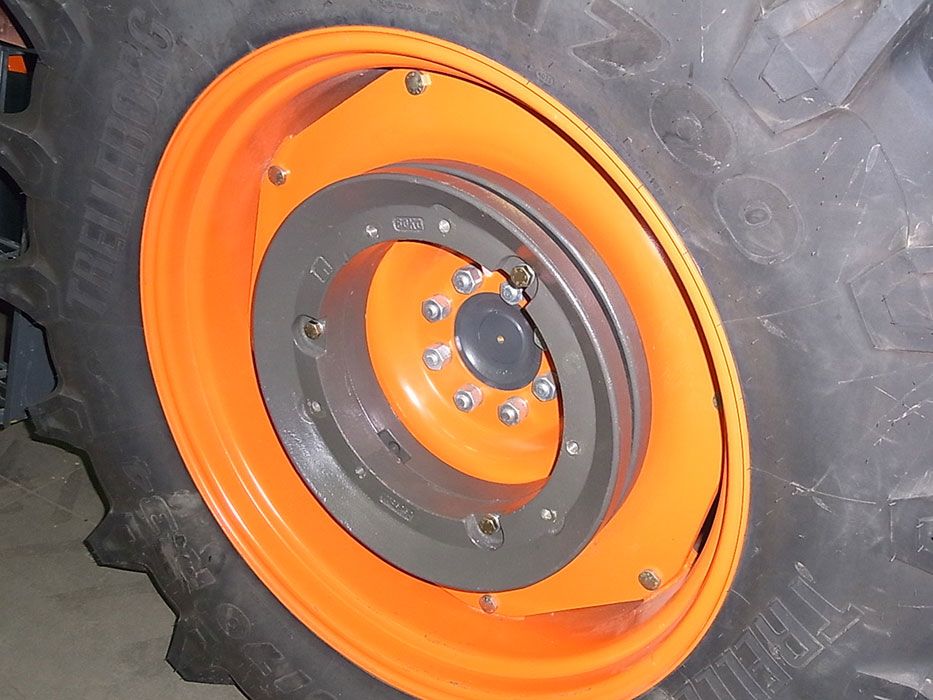

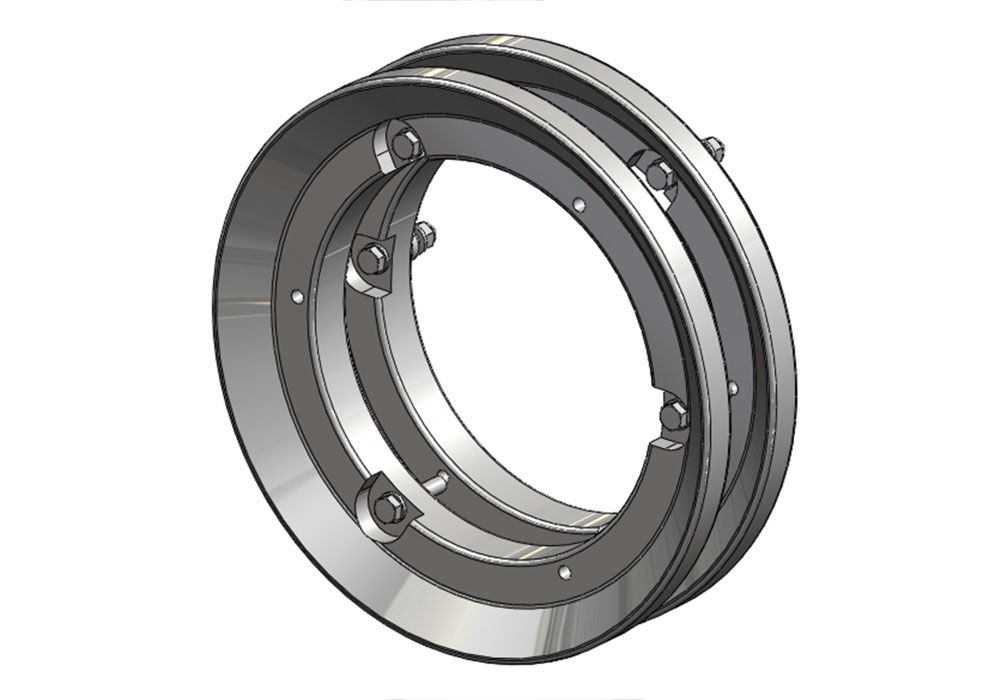

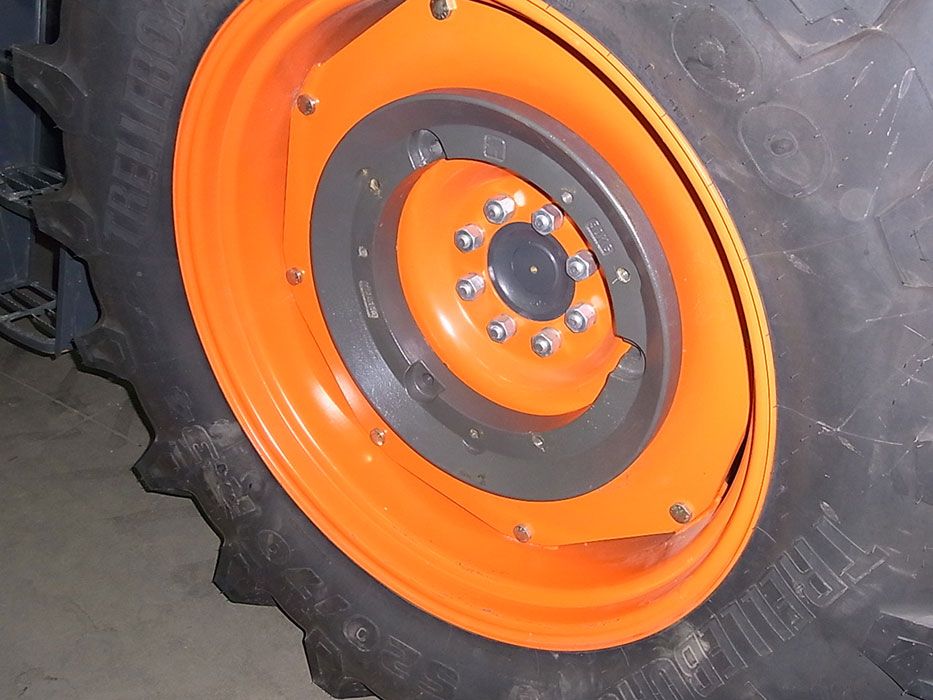

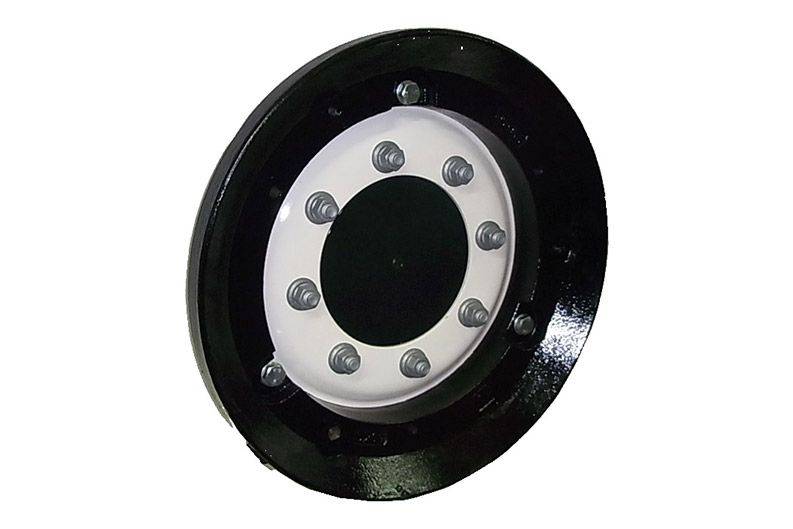

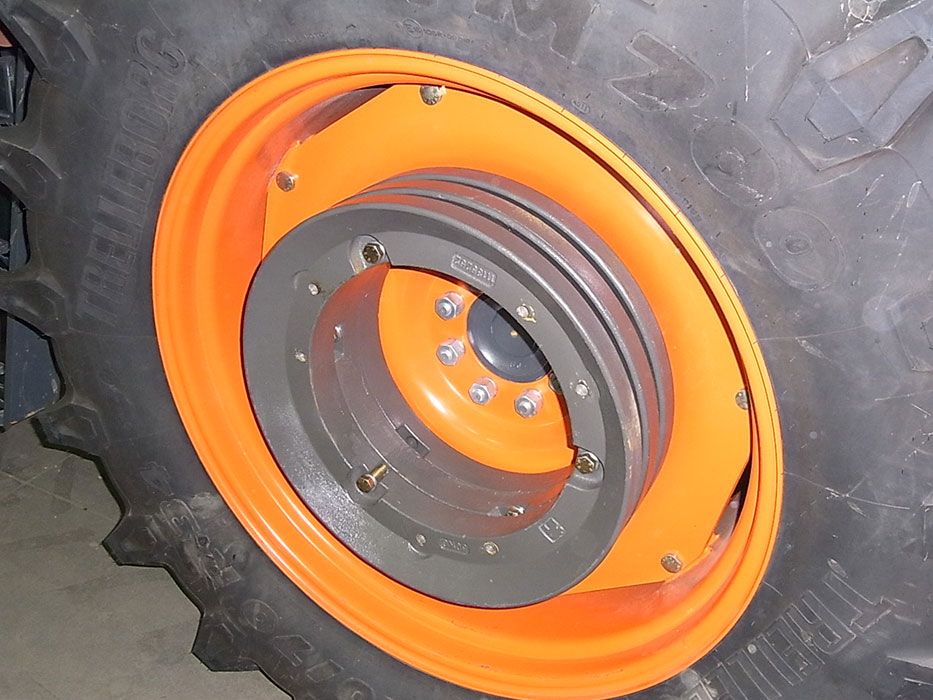

50kg

  • 3 drilling Ø430 centre distance
  • to be mounted directly on the rim

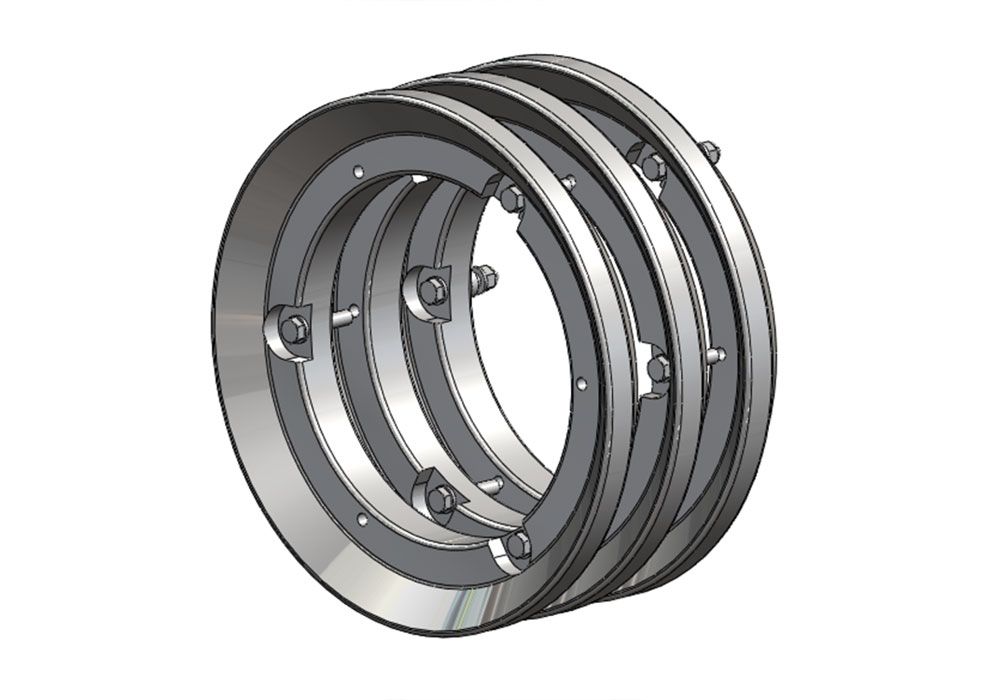

  • up to 6 x 50kg weights per wheel

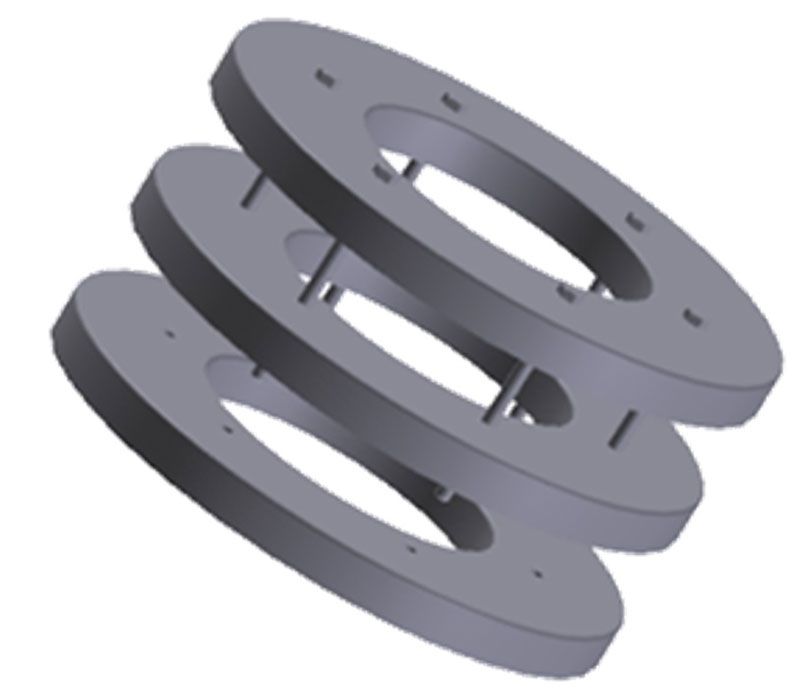

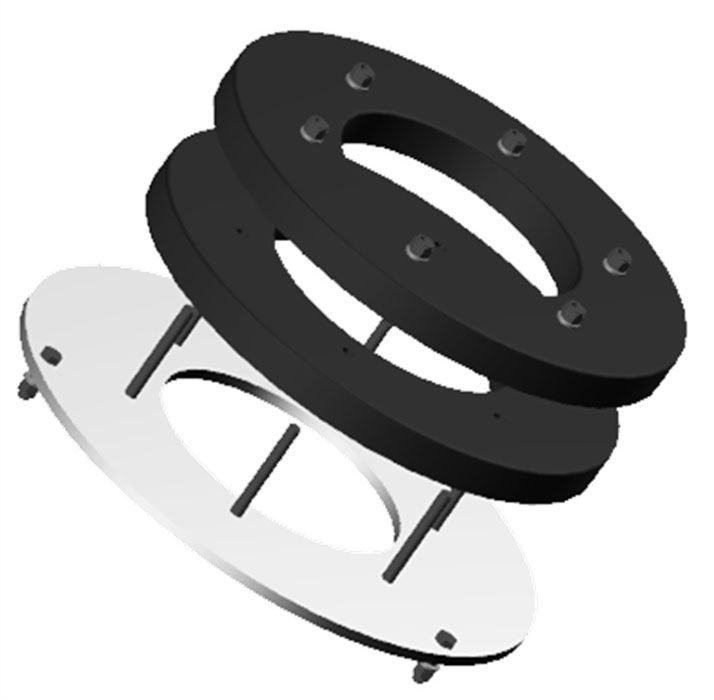

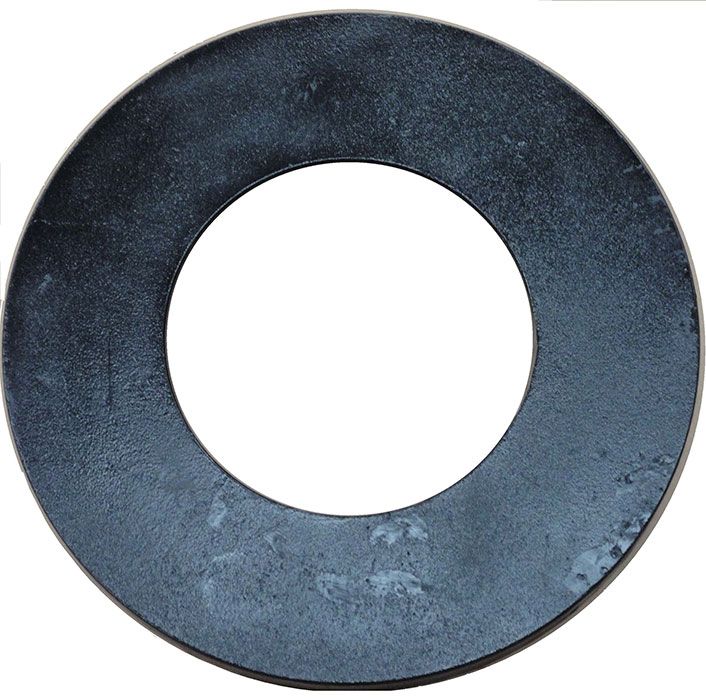

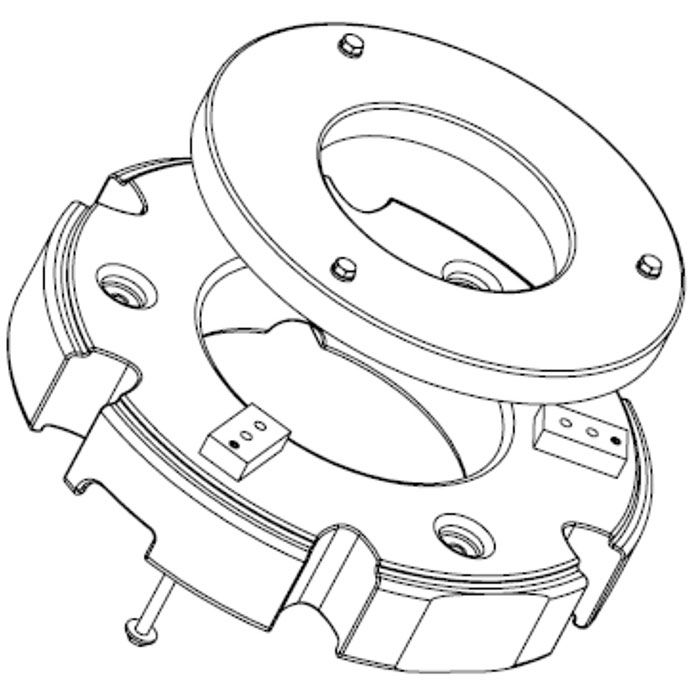

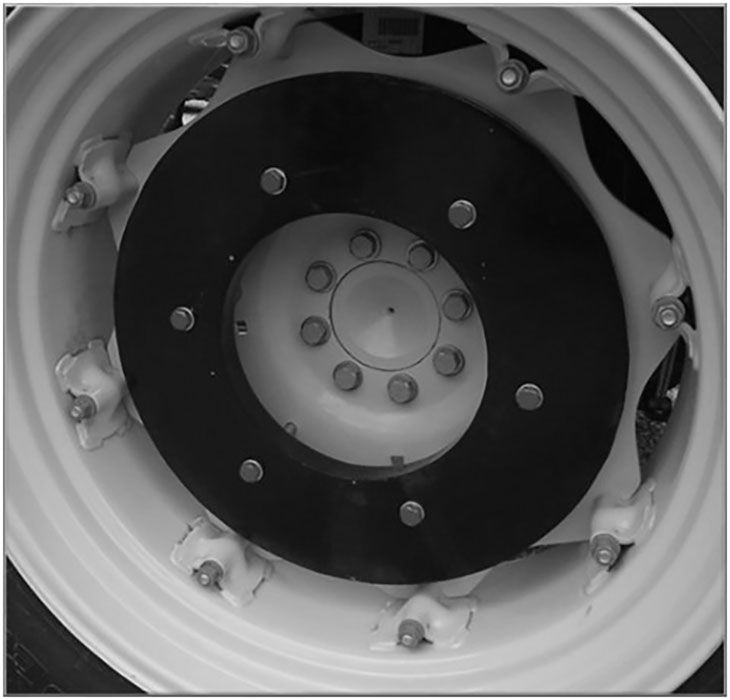

80kg

  • Drilling according to your drawing
  • to be mounted directly on the rim
  • up to 4 x 80kg weights per wheel

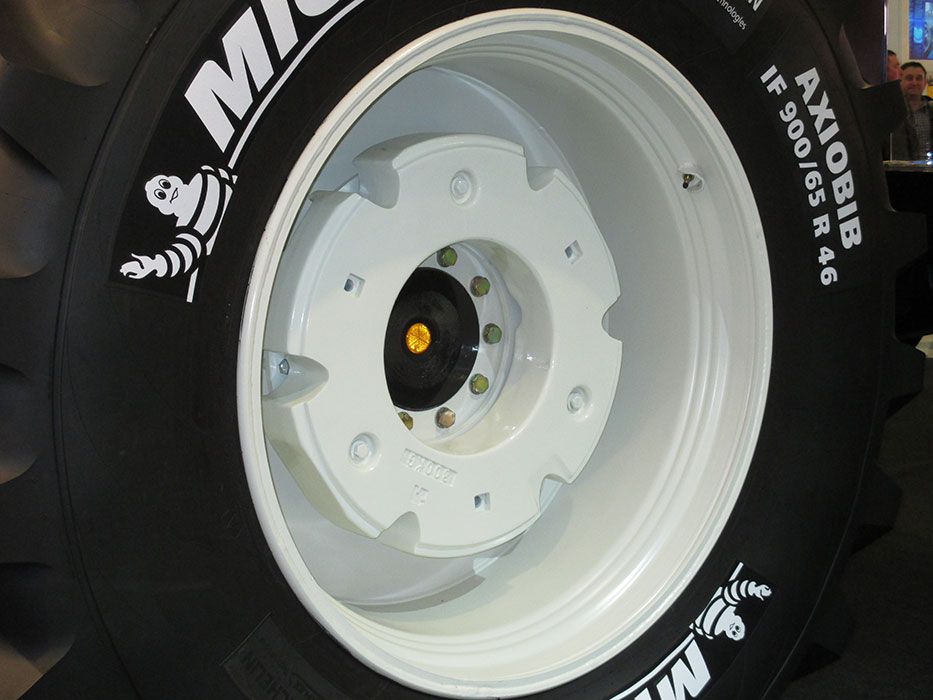

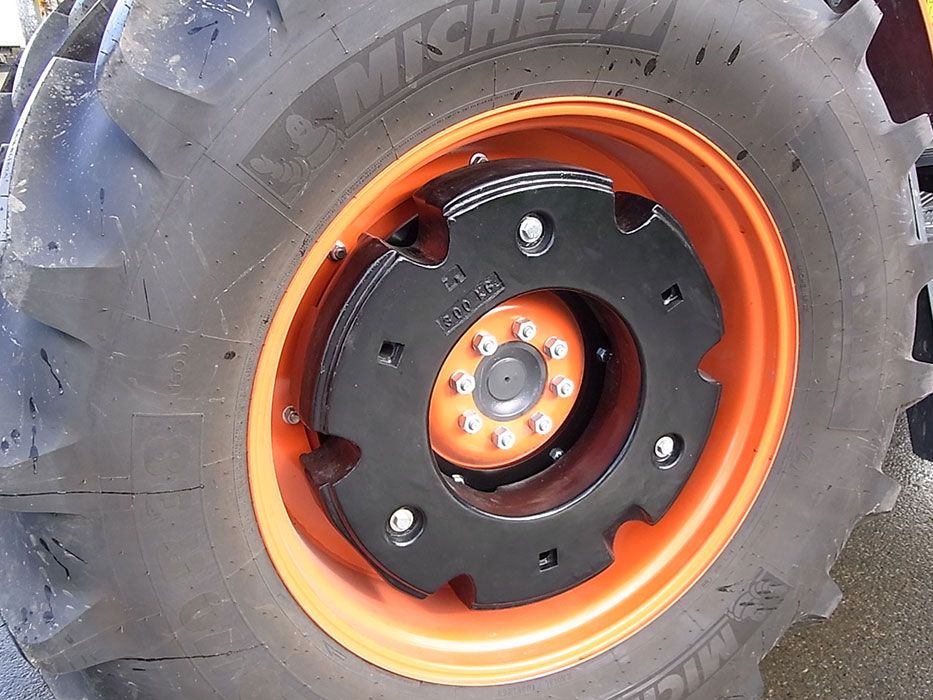

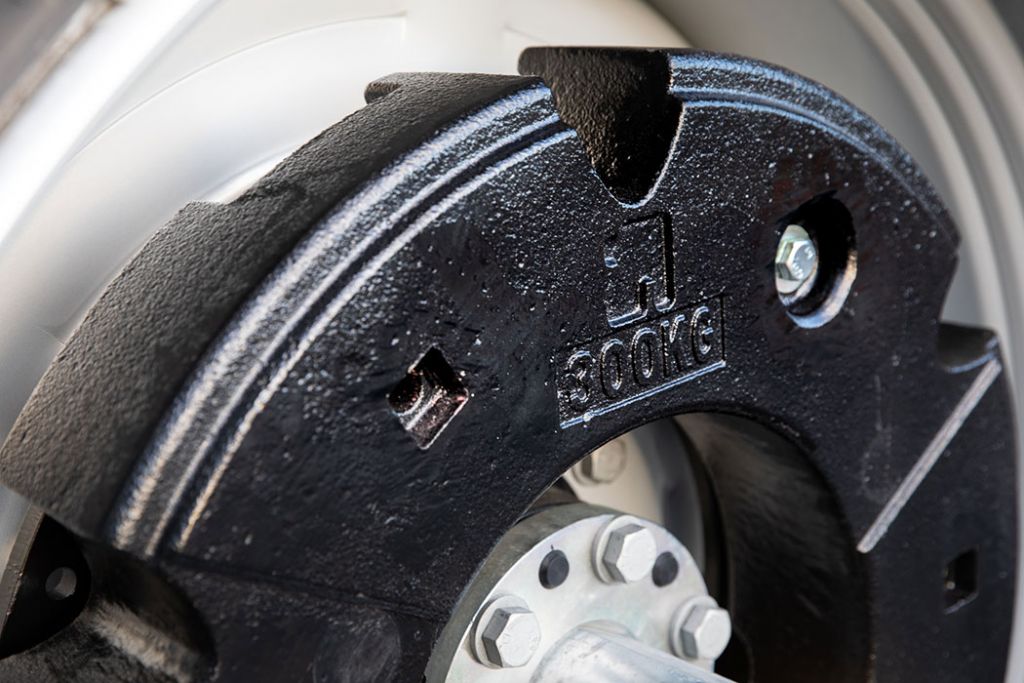

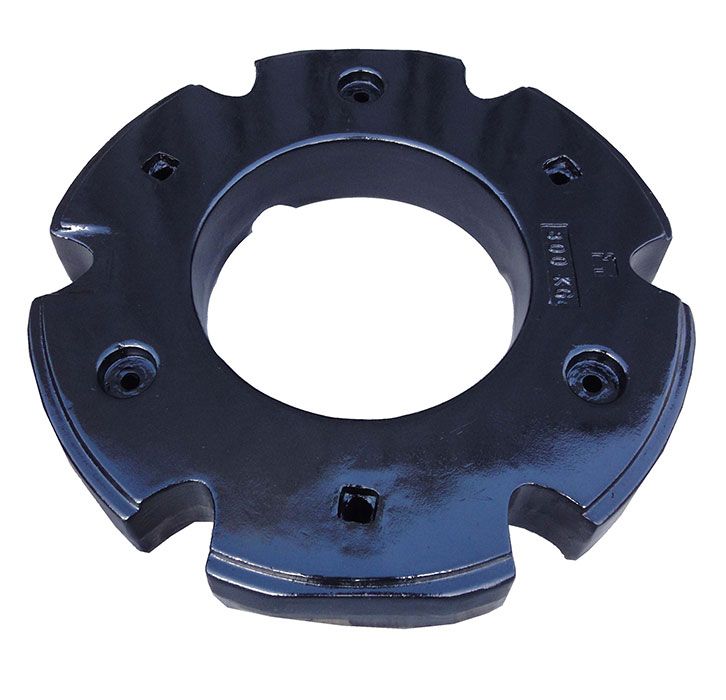

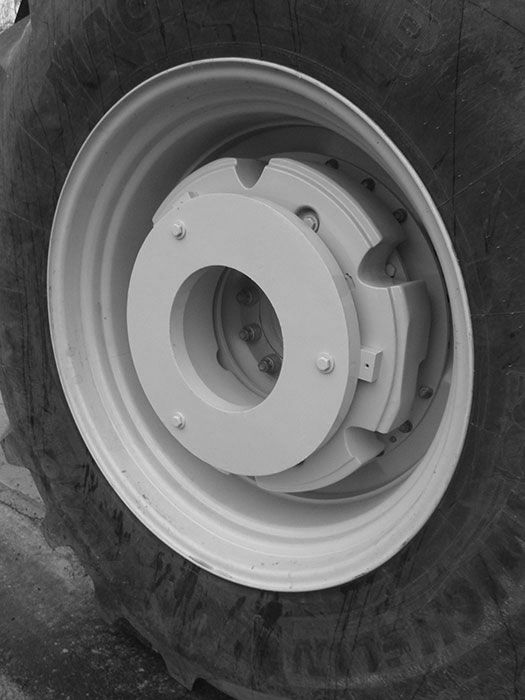

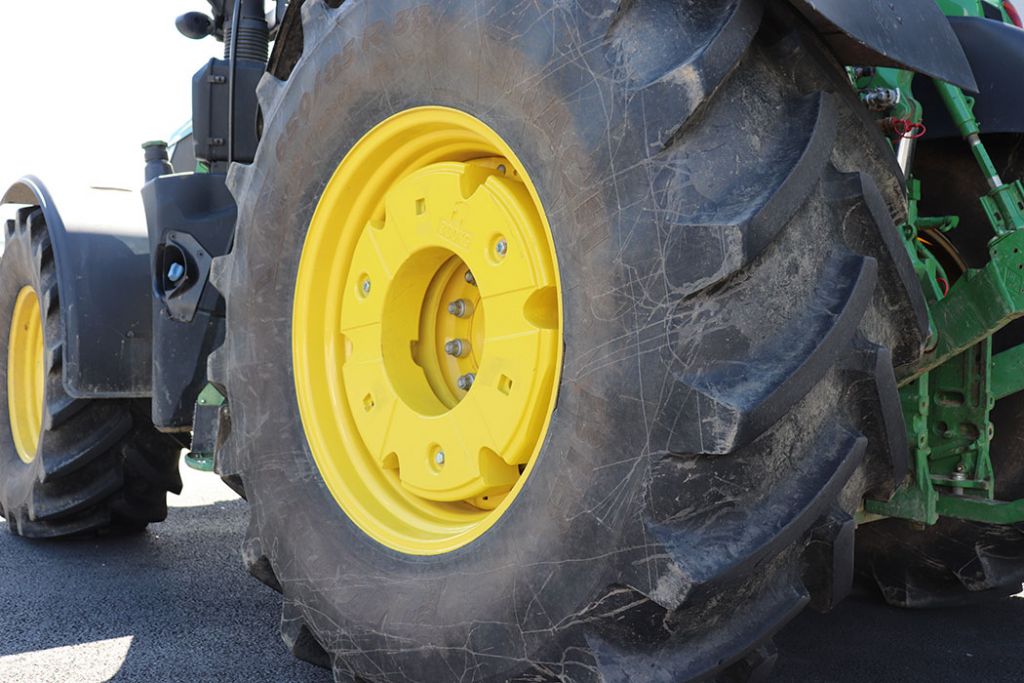

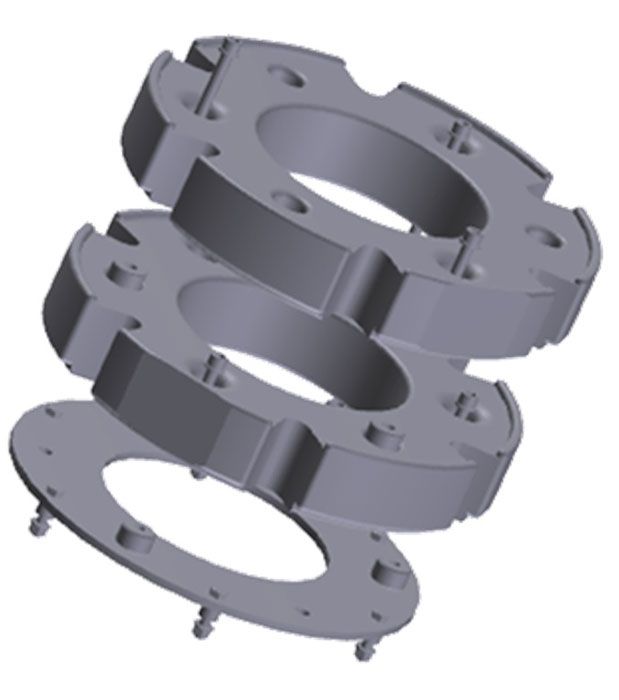

300kg

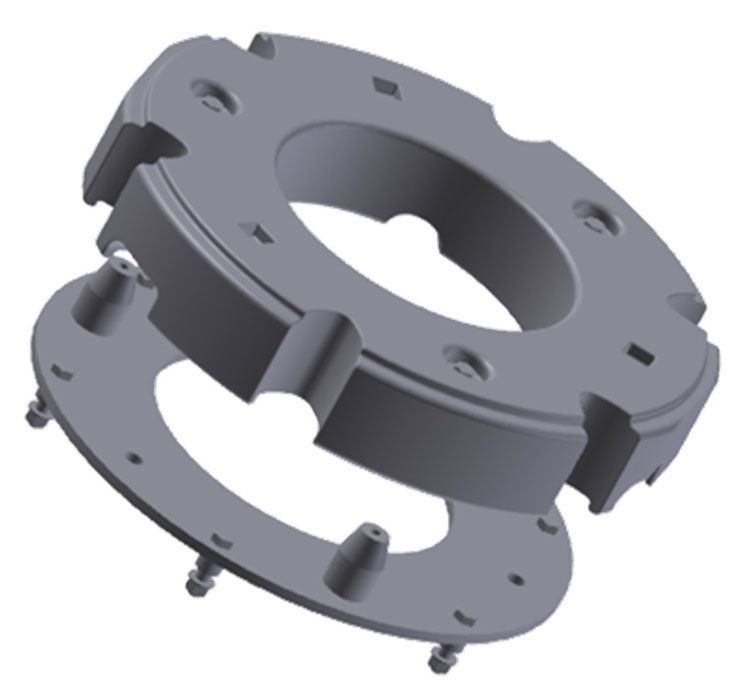

  • Mounting plate required
  • up to 2 x 300kg weights per wheel

Tractor-compatible

Case Claas Deutz Fahr Fendt John Deere Kioti Kubota Landini Massey Ferguson Mc Cormick New Holland Same Valtra
